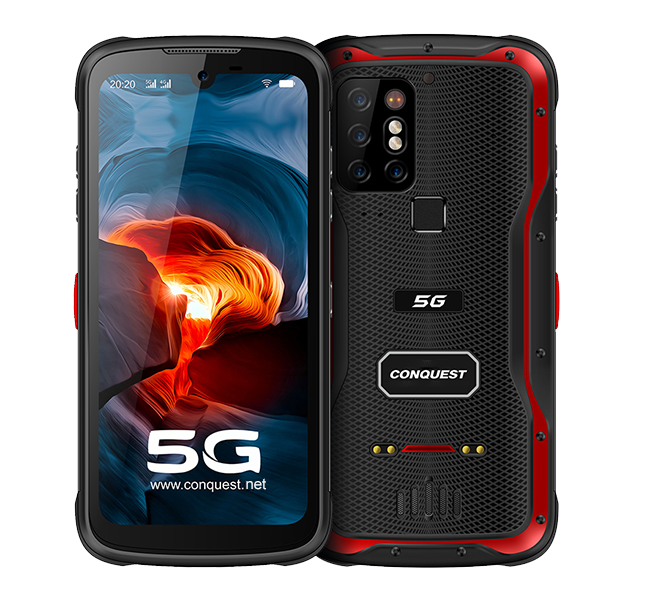

S20 (5G)
S20 (5G)
The World’s First 5G & Night Vision Rugged Smartphone
  • 8GB RAM+256RAM
  • 2W 120DB Loudspeaker
  • Global 5G Rugged Phone, IP68 & IP69K & MIL-STD-810
Buy From Mall
  • Details
  • Parameter
BUY

  • ItemDescription
    ColorBlack/Yellow/Red
    RAM/ROM8GB+128GB/256GB
    Product FeaturesAndroid 11
    Golbal 5G Network
    IP68/IP69K（MIL-STD-810H）
    SMART PA
    WIFI Display
    PoC Walkie Talkie (Cellular intercom)
    Magnetic Charging
    NFC
    Infrared remote
    CertificateIP68/IP69K/MIL-STD-810H
    PlatformMT6873,Dimensity 800 2GHz八核(Eight-Core
    Software VersionAndroid 11
    LanguageGlobal language
    BandGSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
    GSM：B2/3/5/8
    WCDMA：B1/2/4/5/6/8/19
    TDS：B34/39
    CDMA：BC0/BC1/BC10
    TDD：B34/38/39/40/41
    FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66
    5G:N1/3/5/8/20/28/38/41/77/78/79
    Data UL/DL rateGPRS:53.6Kbps
    WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps
    TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps
    FDD:Uplink 50Mbps,Downlink150Mbps
    TDD: Uplink50Mbps, Downlink150Mbps
    Resolution/Screen Type/Size/PixelTFT 6.3 FHD+ IPS 1080*2340
    CameraFront Camera： 16MP,
    Rear Camera： Main Camera 48MP/ Wide angle 13MP/ Night vision 20MP /Macro 2MP
    Dual card/single card Dual Nano sim
    Target Battery Capacity8000mAh  （4.4V）
    Standby Time900H
    Talk Time18H
    Charging Time4H    （PE+ 9V/2A）
    Size(mm)L170.5*W81.6*H18.4MM
    Weight(with battery)380g
    Water resistanceIP68（SGS）
    Touch Lens10 Point touch,incell
    AntennaEmbedded
    VibratorLinear motor
    Speaker2035 （>120db）
    Receive809
    MicrophoneDouble silicon wheat(Noise Reduction Mic)
    Charger JackType-c
    I/O ConnectorType-C
    SIM TypeNano Sim
    Flash LightingYES
    G-SensorYES
    BluetoothBT5.0
    WIFI2.4G&5.8G/Hot spot(2.0)
    FMFM (No headphones needed)
    GPS+Beidou+Glonass+GalileoBT/WIFI/GPS(3IN1 Antenna)
    （GPS+Beidou+Glonass+Galileo）
    Proximity SensorYES
    Light SensorYES
    Power IndicatorYES
    E-CompassYES
    GyroYES
    Geomagnetic sensorYES
    Air pressure/altitudeYES
    Infrared remote controlYES
    Heart rateYES
    USB OTGYES
    Dock ChargerYES
    Suction ferromagnetic chargeYES
    Waist clip, lanyardYES
    Fingerprint IDYES
    Face UnlockYES
    NFC13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer)
    PoC (Push-to-Talk Over Cellular)YES
    Input10 Point,incell
    External KeysPower key (Physical button)
    Volume+/Volume- (Physical button)
    PTT Key (Physical button)
    AI/Camera key (Physical button)
    Fn key (Physical button)
    Home Key （Touch）
    Menu key （Touch）
    Back key （Touch）


    ItemDescription
    ColorBlack/Yellow/Red
    RAM/ROM8GB+128GB/256GB
    Product FeaturesAndroid 11
    Golbal 5G Network
    IP68/IP69K（MIL-STD-810H）
    SMART PA
    WIFI Display
    PoC Walkie Talkie (Cellular intercom)
    Magnetic Charging
    NFC
    Infrared remote
    CertificateIP68/IP69K/MIL-STD-810H
    PlatformMT6873,Dimensity 800 2GHz八核(Eight-Core
    Software VersionAndroid 11
    LanguageGlobal language
    BandGSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
    GSM：B2/3/5/8
    WCDMA：B1/2/4/5/6/8/19
    TDS：B34/39
    CDMA：BC0/BC1/BC10
    TDD：B34/38/39/40/41
    FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66
    5G:N1/3/5/8/20/28/38/41/77/78/79
    Data UL/DL rateGPRS:53.6Kbps
    WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps
    TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps
    FDD:Uplink 50Mbps,Downlink150Mbps
    TDD: Uplink50Mbps, Downlink150Mbps
    Resolution/Screen Type/Size/PixelTFT 6.3 FHD+ IPS 1080*2340
    CameraFront Camera： 16MP,
    Rear Camera： Main Camera 48MP/ Wide angle 13MP/ Night vision 20MP /Macro 2MP
    Dual card/single card Dual Nano sim
    Target Battery Capacity8000mAh  （4.4V）
    Standby Time900小时/900H
    Talk Time18H
    Charging Time4H    （PE+ 9V/2A）
    Size(mm)L170.5*W81.6*H18.4MM
    Weight(with battery)380g
    Water resistanceIP68（SGS）
    Touch Lens10 Point touch,incell
    AntennaEmbedded
    VibratorLinear motor
    Speaker2035 （>120db）
    Receive809
    MicrophoneDouble silicon wheat(Noise Reduction Mic)
    Charger JackType-c
    I/O ConnectorType-C
    SIM TypeNano Sim
    Flash LightingYES
    G-SensorYES
    BluetoothBT5.0
    WIFI2.4G&5.8G/Hot spot(2.0)
    FMFM (No headphones needed)
    GPS+Beidou+Glonass+GalileoBT/WIFI/GPS(3IN1 Antenna)
    （GPS+Beidou+Glonass+Galileo）
    Proximity SensorYES
    Light SensorYES
    Power IndicatorYES
    E-CompassYES
    GyroYES
    Geomagnetic sensorYES
    Air pressure/altitudeYES
    Infrared remote controlYES
    Heart rateYES
    USB OTGYES
    Dock ChargerYES
    Suction ferromagnetic chargeYES
    Waist clip, lanyardYES
    Fingerprint IDYES
    Face UnlockYES
    NFC13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer)
    PoC (Push-to-Talk Over Cellular)YES
    Input10 Point,incell
    External KeysPower key (Physical button)
    Volume+/Volume- (Physical button)
    PTT Key (Physical button)
    AI/Camera key (Physical button)
    Fn key (Physical button)
    Home Key （Touch）
    Menu key （Touch）
    Back key （Touch）
