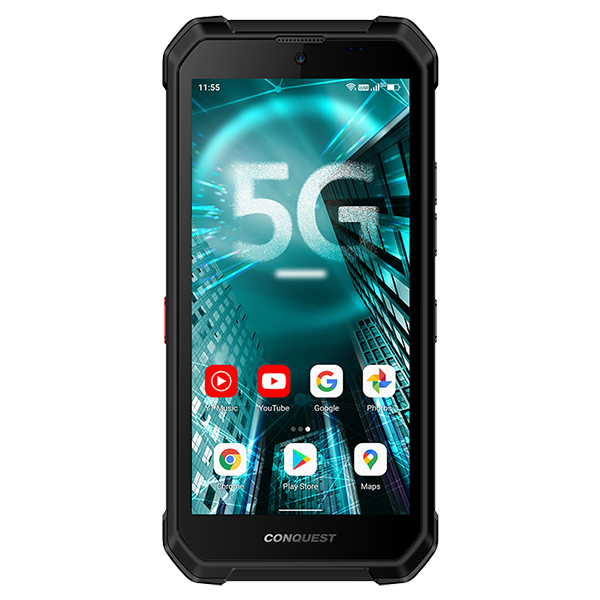

S21 (5G)
S21 (5G)
Global 5G Bands and IR Thermometer Phone
  • 8GB RAM+128RAM
  • 120DB Loudspeaker
  • Global 5G Rugged Phone, IP68 & IP69K & MIL-STD-810
Buy From Mall
  • Details
  • Parameter
BUY



  • ItemDescription
    Product FeaturesAndroid 11 IP68  SMART PA 5G Network
    PlatformMTK_6833（Dimensity 700） 8+128GB  Smart baseband chip 5G-C； 2.0 GHz Octa core
    SW versionAndroid 11
    Band2G：GSM(B2/3/5/8)  CDMA (BC0/BC1)
    3G：WCDMA（B1/2/4/5/6/8/19） TD-S(B34/B39)
    4G：TDD（B34/38//39/40/41）FDD（B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66）
    5G：NR（n1、n3、n28,n38, n41、n77、n78）
    Data UL/DL rateGPRS:53.6Kbps
    WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps
    TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps
    FDD:Uplink 50Mbps,Downlink150Mbps
    TDD: Uplink50Mbps, Downlink150Mbps
    Screen Type/Size/Pixel5.7inch IPS  1080x2160  FHD incell；
    Camera32MP Front Camera(f/2.2)
    48MP Main Camera (f/1.8)+8MP ultra wide-angle rear camera
    Target Internal Memory8G+128GB/4+64GB
    SIM card/TF cardDual Nano Sim card / Single Nano Sim+TF card
    Target Battery Capacity4500mAh
    Standby Time500h
    Talk Time10h
    Charging Time2.5h (9V/2A）
    Size(mm)167.5x79.8x15.6mm
    Weight(with battery)290g
    ColorBlack
    Water resistanceIP68
    Touch LensYES
    AntennaEmbedded
    VibratorWelding type, diameter 0827mm
    Speaker2035 rated input power 2W waterproof speaker
    Receiver1206 shrapnel waterproof receiver
    MicrophoneDouble silicon wheat(Noise Reduction Mic)
    Charger JackTYPE-C
    I/O ConnectorTYPE-C to 3.5mm
    SIM TypeNano sim
    Flash LightingYES
    G-SensorYES
    BluetoothBT5.1
    WIFI2.4G/5G（802.11ac/a/b/g/n）
    FMFM (No headphones needed)
    GPS+Beidou+Glonass+GalileoBT/WIFI/GPS(3IN1 Antenna)
    （GPS+Beidou+Glonass+Galileo）
    Proximity SensorYES
    Light SensorYES
    Power breathing indicator3 Colors
    E-CompassYES
    GyroYES
    Atmospheric altitudeYES
    Temperature measurementYES
    USB OTGYES
    Dock ChargerYES
    Waist clipYES
    LanyardYES
    Magnetic chargingYES
    Fingerprint recognitionYES
    NFC13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer)
    PoC Walkie TalkieYES
    Input10 Point Touch,incell
    External KeysPower key (Physical button)
    Volume+/- Key (Physical button)
    /PTT Key (Physical button)
