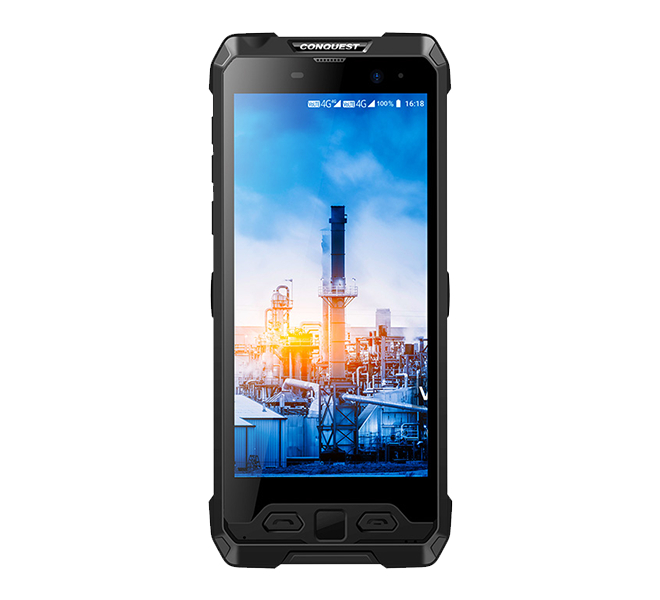

S19 (4G)
S19 (4G)
MIL-STD-810H 4G Rugged Smartphone supporting multiple modules
  • Optional：Strong Flashlight/1D and 2D Scanner/Infra
  • Function Optional：PoC/PoC and UHF/UHF VHF Poc/DMR
  • 5.7 inch Display
  • Battery：9000mAh
  • IP68 Waterproof/MIL-STD-810H
  • 2/3/4G Network
Buy From Mall
  • Details
  • Parameter
BUY

  • Network Support：

    GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE GSM:B8/B3/B2/B5 BCO WCDMA:1/2/5/8 EVDO TD-SCDMA:34/39 TDD-LTE:34/38/39/40/41 FDD-LTE:1/2/3/4/5/7/8/12/17/19/20/28A/28B/18/25/26/66/13


    Note：

    1.This Version Don't Support Google Play

    2.Thermal imaging version needs to be customized, temporarily set to inventory 0, if necessary, you can send a message to contact us.

    Network Support：

    GSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE GSM:B8/B3/B2/B5 BCO WCDMA:1/2/5/8 EVDO TD-SCDMA:34/39 TDD-LTE:34/38/39/40/41 FDD-LTE:1/2/3/4/5/7/8/12/17/19/20/28A/28B/18/25/26/66/13




  • ItemDescription
    Product FeaturesAndroid8.1/Android11
    IP68/IP69K
    Infrared thermal imaging
    DMR digital to analog intercom
    Single analog intercom
    UV single analog intercom
    One and two-dimensional scanning head
    Strong Flashlight
    Polymer 9000mAh large battery
    Rear camera 4800W + Front camera 1300W
    Customization①Explosion-proof Version
    ②Various Frequency RFID
    ③1D & 2D Barcode Scanner
    ④Infrared Thermal Imaging
    ⑤DMR+UHF/UHF+VHF
    ⑥Infrared Temperature Measurement
    ⑦1.4Ghz，1.8Ghz，400Mhz，
      600Mhz，700Mhz，230Mhz
      LTE Private Network Terminal
    Standard version optionalOptional：
    ①Strong Flashlight
    ②1D 2D Barcode Scanner
    ③Infrared Thermometer

    Can add options：
    ①Thermal Imaging+PoC
    ②UHF + PoC
    ③UHF+VHF+PoC
    ④DMR+UHF+PoC
    ⑤PoC
    Note：
    DMR:Digital walkie talkie
    UHF:Analog walkie talkie（400-170Mhz）
    VHF:Analog walkie talkie（140-170Mhz）
    Poc：Push-to-Talk Over Cellular



    PlatformMT6765,P35 2.3GHz(Eight-Core)
    LanguageGlobal language
    Software versionAndroid8.1/Android11(Upgrade to Android 11 by the end of 2020)

    BandGSM/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
    GSM:B8/B3/B2/B5
    BCO
    WCDMA:1/2/5/8
    EVDO
    TD-SCDMA:34/39
    TDD-LTE:34/38/39/40/41
    FDD-LTE:1/2/3/4/5/7/8/12/17/19/20/28A/28B/18/25/26/66/13
    Data UL/DL rateGPRS:53.6Kbps
    WCDMA:Uplink5.76Mbps,Downlink 14.4Mbps
    TD-SCDMA:Uplink2.6Mbps,Downlink 3.1Mbps
    FDD:Uplink 50Mbps,Downlink150Mbps
    TDD: Uplink50Mbps, Downlink150Mbps
    LCD Screen Type/Size/PixelTFT 5.7 FHD+ IPS 1080*2160
    CameraRear camera 4800W,Front camera 1300W
    （Rear 1.6 / Front 1.8 large aperture）
    Target Internal Memory6+128GB
    Dual card/single cardDual SIM (small card)/Nano sim
    Target Battery Capacity9000mAh （Polymer built-in battery (4.4V high voltage)）
    Standby Time900H
    Talk Time18H
    Charging Time5H （Support fast charging PE+ 9V/2A）
    Size(mm)L178.2*W79*H19.2mm
    Weight(with battery)398g
    ColorBlack
    Water resistanceIP68(SGS certification)
    Touch Lens5-point touch, incell
    AntennaEmbedded(Built-in)
    VibratorCylindrical motor
    Speaker2035 speaker(>120db)
    Receive1506 shrapnel
    MicrophoneSilicon wheat（Dual silicon microphone (support noise reduction MIC)）
    Charger JackUSB-C ,Support fast charging
    I/O Connector3.5 earphone/M6 interface earphone
    SIM TypeNano sim
    TF CardYES,Up to 2TB
    Flash lightYES
    Flash LightingYes
    G-SensorYes
    BluetoothBT5.0
    WIFI2.4G&5.8G；Support WIFI hotspot(2.0)
    FMFM (No headphones needed)
    GPS PositioningBT/WIFI/GPS(3IN1 Antenna)
    （GPS+Beidou+Glonass+Galileo）
    Proximity SensorYes
    Light SensorYes
    Power breathing indicatorYes
    E-CompassYes
    GyroYes
    Atmospheric altitudeYes
    Infrared remote controlYes
    USB OTGYes
     Dock ChargingYes
    Magnetic chargingYes
    Waist clip/lanyardYes
    Fingerprint recognitionYES
    NFC13.56MHZ (antenna placed in the battery area); support ISO15693, ISO1443A/B two protocols, support read and write mode, card mode, and near field communication (point-to-point file transfer)
    POC IntercomeBroadcast tuned APK method
    Input5 Point Touch ,incell
    External cameraExternal accessories via M6 interface
    PTT Intercome"Dual slot DMR digital-analog intercom/analog intercom is optional,
    Compatible with U/V band/350 frequency band, and also supports SMS function"
    RFID（Optional）（Low frequency 125KHZ, high frequency 13.56KHZ, ultra high frequency 915MHZ, microwave 2.45GHZ, 5.8GHZ）
    Thermal imagingOptional
    1D/2D Barcode Scanner
    （Optional）    		2D Code: PDF417, QR Code, Data Matrix and so on
    1D Code: Code128, UCC / EAN-128, AIM128, EAN-8, ISBN / ISSN and so on (Differential Depth> 5mil ")
    External KeysPower Key
    （Side button (Physical button)）
    Volume+/Volume-
    (Side button (Physical button))
    PTT Key
    Side button (Physical button)
    Flashlight Key
    Side button (Physical button)
    Fn key
    Side button (Physical button)
    Menu Key
    (Touch button)
    Back Key
    (Touch button)
    Home Key
    (Touch button)
    Answer Key
    Front (Physical buttons)
    Hang Up Key
    Front (Physical buttons)
